Google Cloud manual setup

Connect Google Cloud to Maple by creating each resource yourself in the Google Cloud console, without running a script.

Manual setup creates the same resources as the setup script, by hand in the Google Cloud console. It takes about 20 minutes.

In Maple, open Integrations → Google Cloud, click Connect Google Cloud, choose the scope and what to collect, then choose Manual setup in Method and click Continue. The dialog lists the steps below with this connection’s names and values: copy them from there. Each step has an Open in console link to the right page.

Roles you need

You connectRoles you need
A projectOwner on the project.
A folderOwner on the host project. On the folder: Logs Configuration Writer for the log sink, and Folder IAM Admin for the read-only roles.
An organizationOwner on the host project. On the organization: Logs Configuration Writer for the log sink, and Organization Administrator for the read-only roles.

Step by step

The screenshots show a project connection. Steps 2 to 7 are for Log forwarding, the rest for Metrics and resources: the dialog leaves out what you didn’t choose. A folder or organization has one more step, Service Usage Consumer on the host project.

1. Enable the APIs

In APIs & Services → Library, search for each API the dialog lists, open it and click Enable. An API that shows Manage and API Enabled is on already. pubsub.googleapis.com is the Cloud Pub/Sub API, not Pub/Sub Lite.

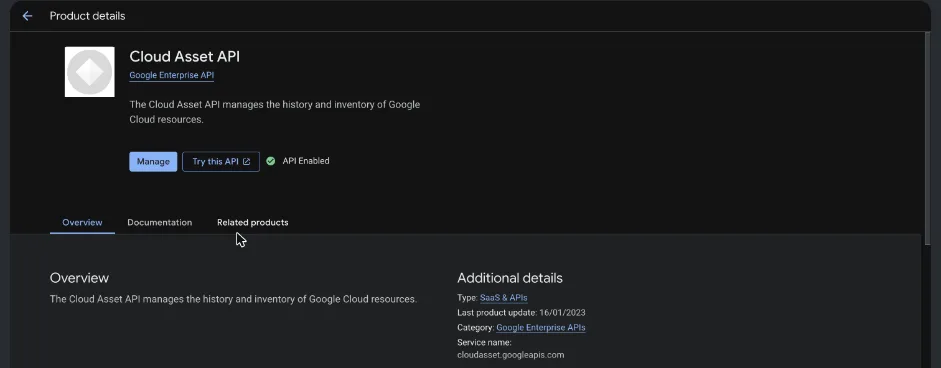

The Cloud Asset API page in the API Library, with a Manage button and a green API Enabled label.
An API that is already on: Manage and API Enabled.

2. Create the Pub/Sub topic

In Pub/Sub → Topics, click Create topic. Paste the Topic ID, untick Add a default subscription, and click Create. The new topic warns that messages will be lost: the subscription in step 4 takes care of that.

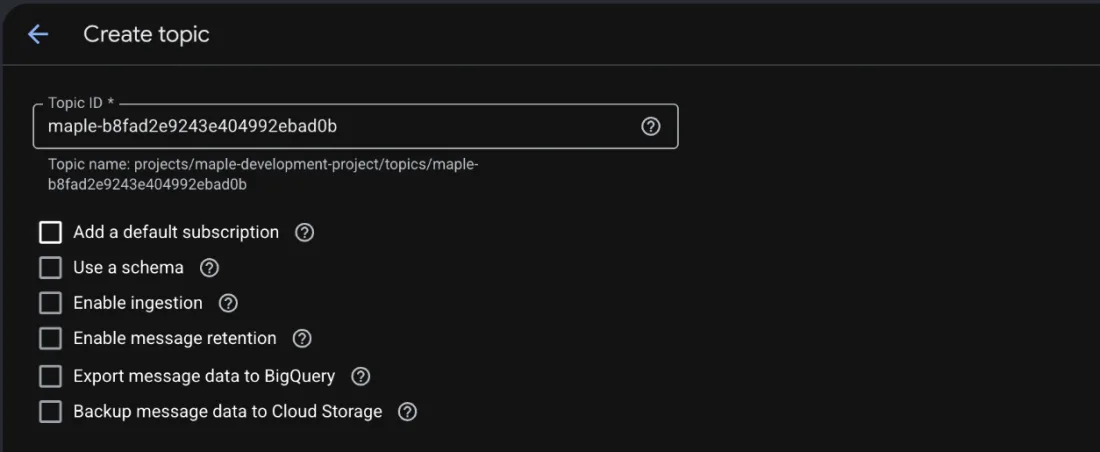

The Create topic form with the Topic ID filled in and Add a default subscription unticked.
Untick Add a default subscription: it would keep a copy of every log that nobody reads.

3. Create the push service account

Pub/Sub signs each push to Maple as this account.

  1. In IAM & Admin → Service accounts, click Create service account.
  2. Paste the Service account name, then the Service account ID: the console fills the ID from the name, so replace it. Paste the description and click Create and close, without roles.
  3. Open the new account, go to its Principals with access tab, not Permissions, and click Grant access.
  4. In New principals, type gcp-sa-pubsub and pick Cloud Pub/Sub Service Account for Project …. The role picker starts on Service Account Admin: replace it with Service Account Token Creator, and click Save.

Step 4 is only needed where the Pub/Sub service agent was created before April 8, 2021, and harmless elsewhere. The grant is listed only with Include Google-provided role grants ticked.

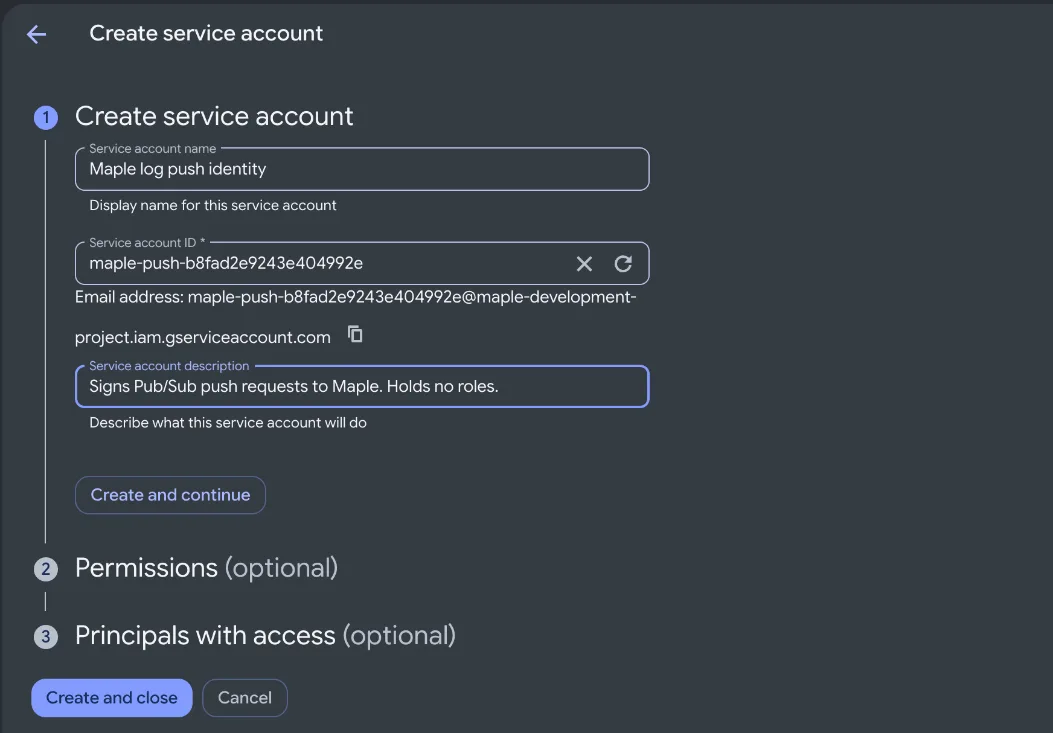

The Create service account form with the name Maple log push identity, the ID maple-push-… and the description filled in, and the Create and close button.
Replace the ID the console suggests with the one from the dialog, then Create and close.

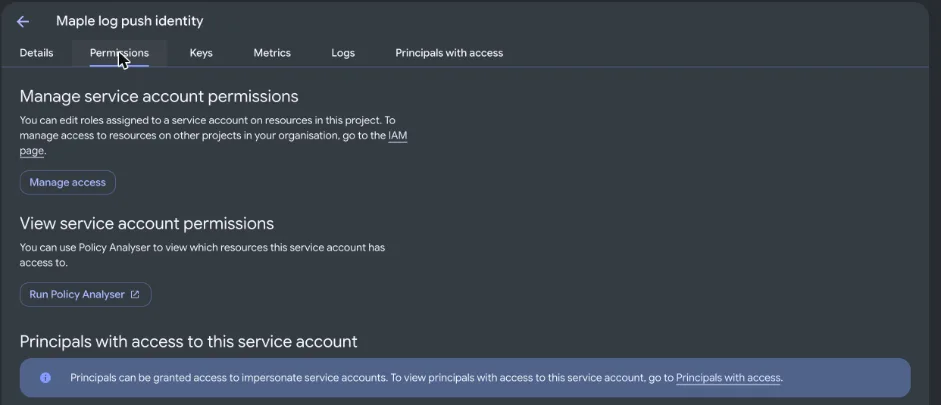

The service account's tabs Details, Permissions, Keys, Metrics, Logs and Principals with access, with a note pointing to Principals with access.
Grants on the account itself live under Principals with access.

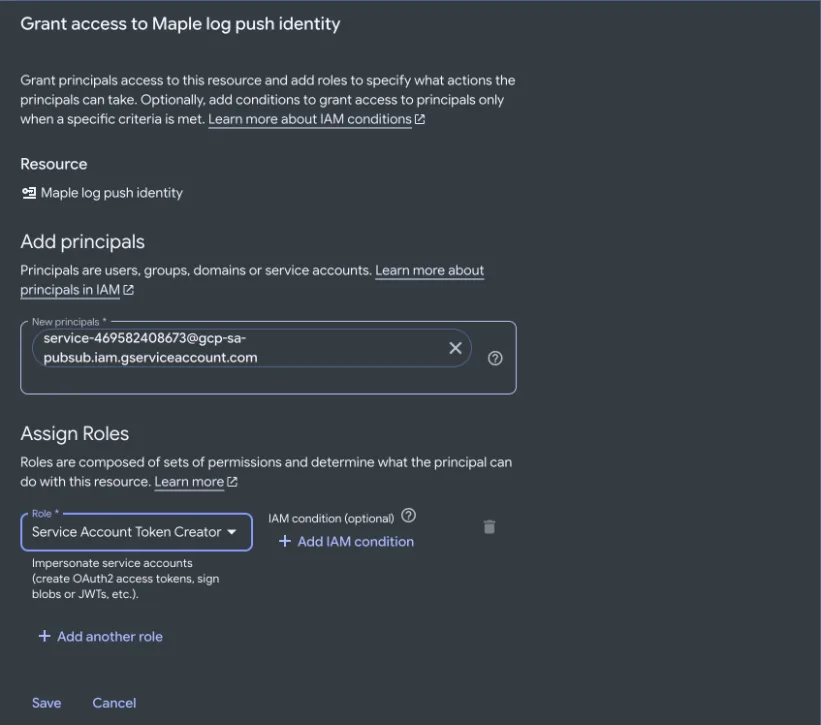

The Grant access panel with the Pub/Sub service agent as new principal and the role Service Account Token Creator.
The Pub/Sub service agent gets Service Account Token Creator.

4. Create the push subscription

In Pub/Sub → Subscriptions, click Create subscription and set:

  • Subscription ID, and the topic from step 2 under Select a Cloud Pub/Sub topic.
  • Delivery type: Push, with the Endpoint URL from the dialog.
  • Tick Enable authentication, pick the push service account from step 3, and paste the endpoint again as Audience. The console marks Audience optional; Maple needs it.
  • Tick Enable payload unwrapping and leave Write metadata unticked. Without unwrapping Maple can’t read what Pub/Sub sends and drops it.
  • Under Failure handling → Retry policy: Retry after exponential backoff delay, 10 to 600 seconds (the defaults).
  • Acknowledgement deadline: 30 seconds.
  • Message retention duration: 1 day, 0 hours, 0 minutes.
  • Expiry period: Never expire. The default, 31 days, deletes an idle subscription.

Click Create.

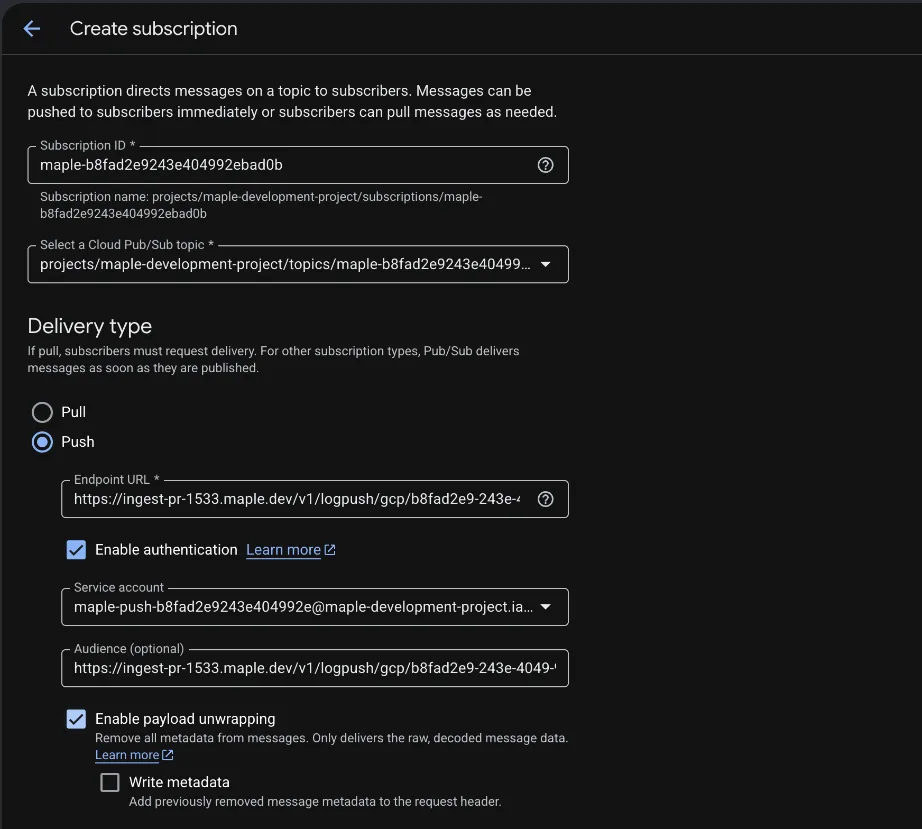

The Create subscription form: subscription ID, topic, Delivery type Push, Endpoint URL, Enable authentication ticked with the push service account, Audience, and Enable payload unwrapping ticked with Write metadata unticked.
Push delivery, signed by the push account, with payload unwrapping on.

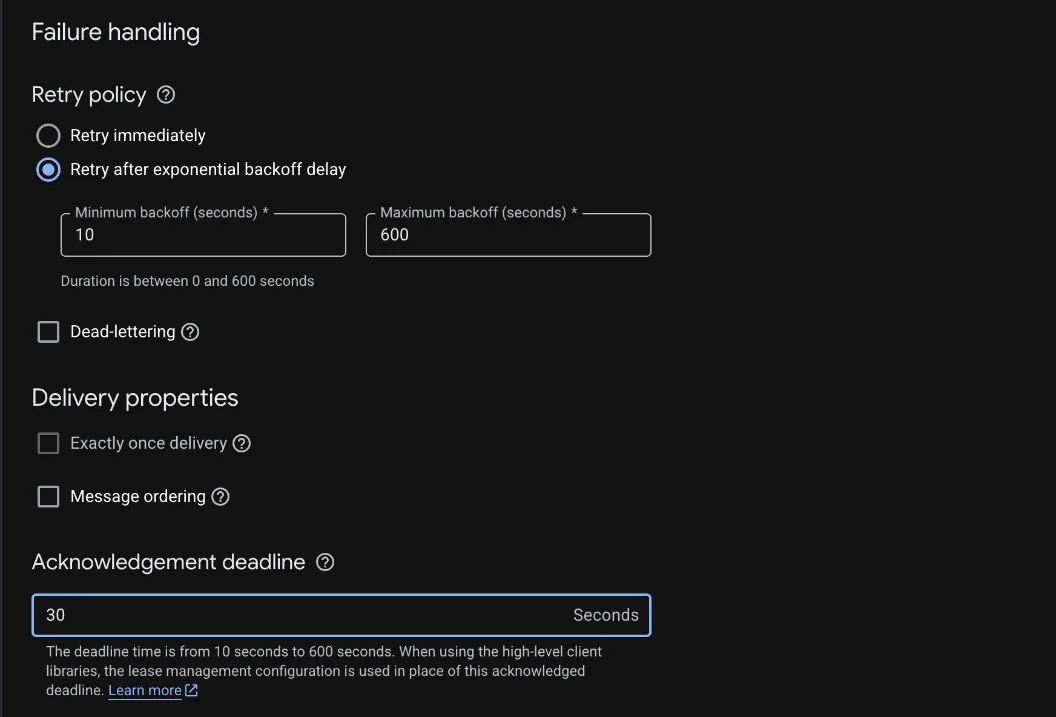

Failure handling with Retry after exponential backoff delay selected, 10 and 600 seconds, and an acknowledgement deadline of 30 seconds.
Retry policy and acknowledgement deadline.

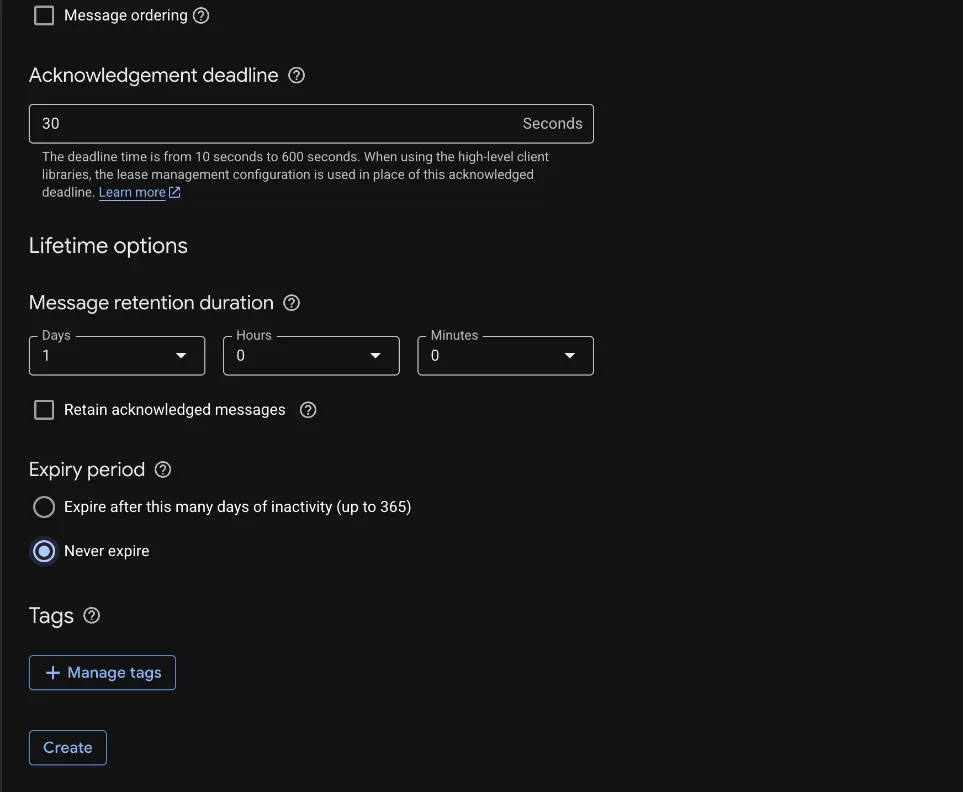

Message retention duration 1 day, 0 hours, 0 minutes, and Expiry period set to Never expire, above the Create button.
One day of retention and Never expire.

5. Create the Log Router sink

In Logging → Log router, click Create sink:

  1. Sink details: paste the Sink name, click Next.
  2. Sink destination: Select sink service → Cloud Pub/Sub topic, pick the topic from step 2, click Next.
  3. Choose logs to include in sink: paste the filter from the dialog into Build inclusion filter, unchanged, and click Next.
  4. Skip Choose logs to filter out of sink and click Create sink.

A new sink takes a few minutes to start forwarding. Entries written in that time are dropped, not delayed.

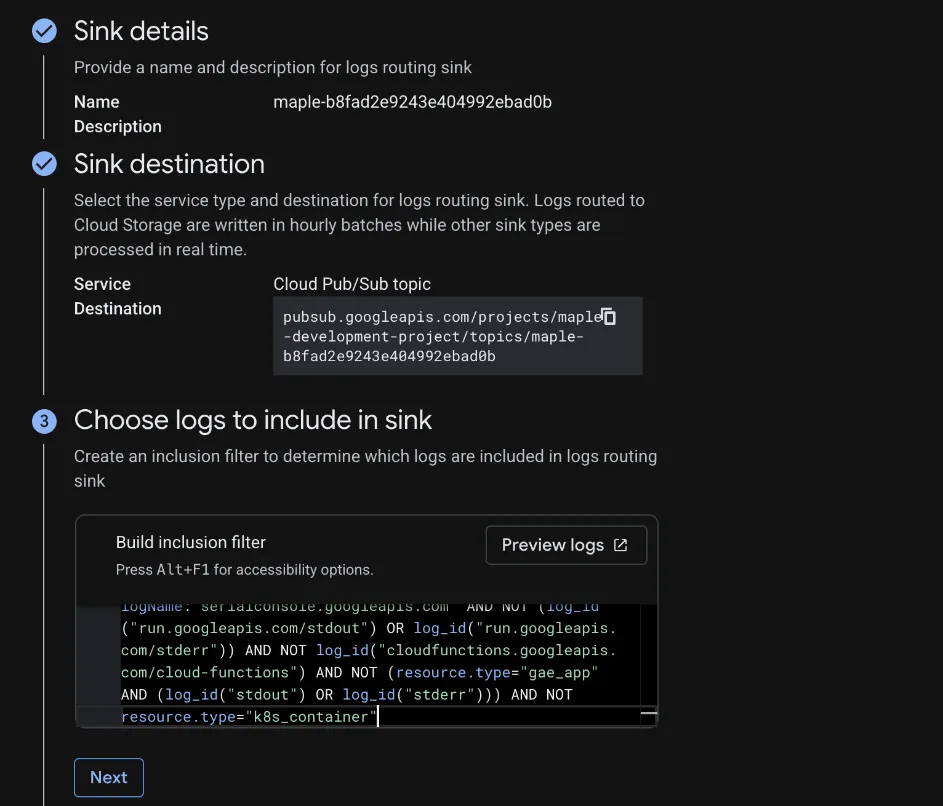

The Create logs routing sink page with sink details and destination done, and the filter pasted into Build inclusion filter.
Paste the filter as the dialog shows it.

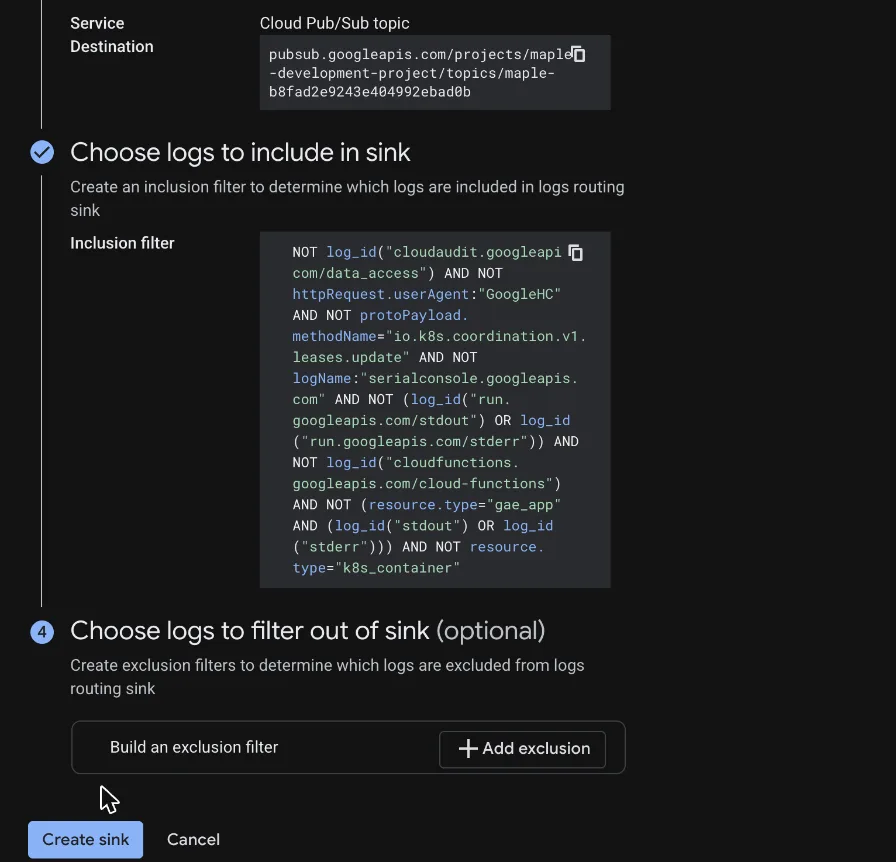

The sink's four sections filled in: destination Cloud Pub/Sub topic, the inclusion filter, no exclusions, and the Create sink button.
Ready to create: Cloud Pub/Sub topic, the filter, no exclusions.

6. Let the sink publish to the topic

  1. In Log router, open the sink’s ⋮ menu → View sink details and copy its Writer identity.
  2. In Pub/Sub → Topics, tick the topic. In the info panel on the right (Show info panel if it is hidden), open Permissions → Add principal.
  3. Paste the writer identity without its leading serviceAccount:: with it, the console refuses the principal. Pick the role Pub/Sub Publisher and click Save.

Grant it on the topic, not on the IAM page, where it would cover every topic in the project.

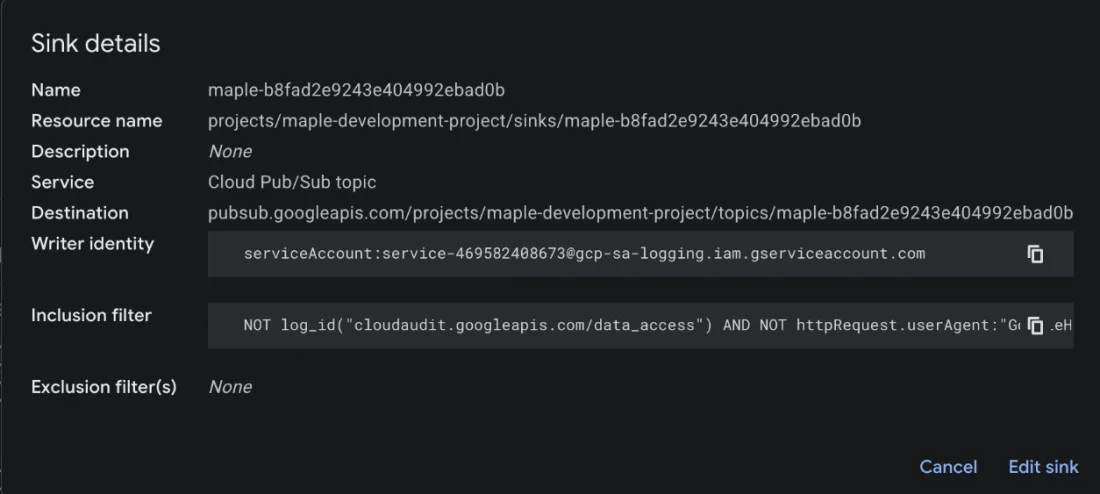

The Sink details modal showing the destination and the writer identity serviceAccount:service-…@gcp-sa-logging.iam.gserviceaccount.com with a copy button.
The writer identity, in View sink details.

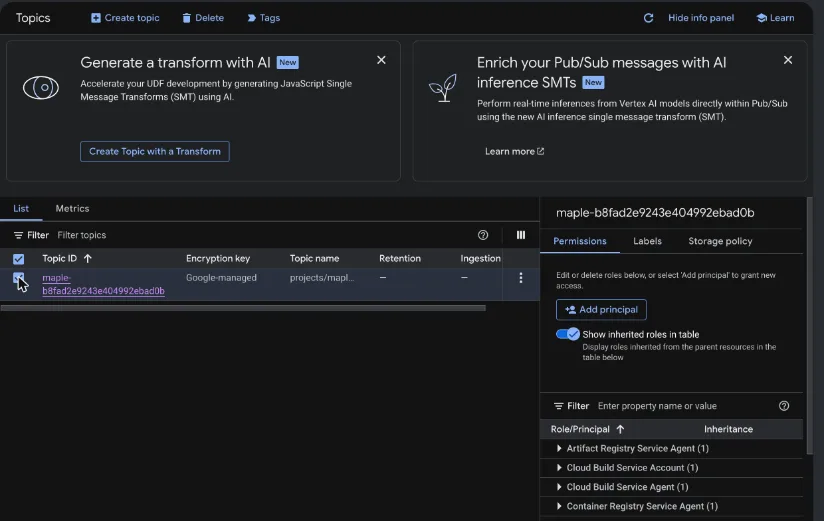

The Topics list with the Maple topic ticked and the info panel open on Permissions, with an Add principal button.
The topic's own Permissions, in the info panel.

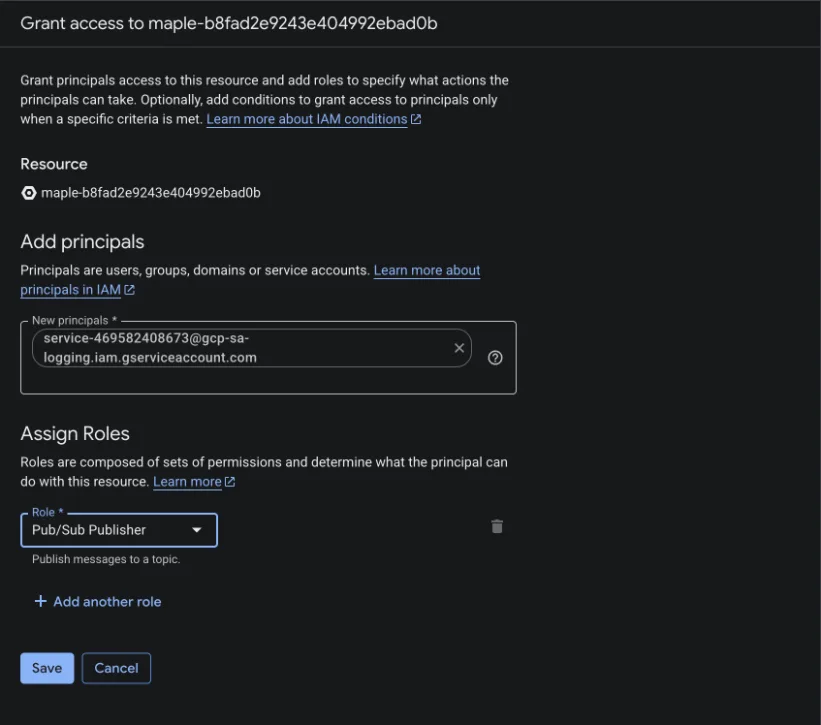

The Grant access panel for the topic with the logging service agent as new principal and the role Pub/Sub Publisher.
The identity without serviceAccount:, with Pub/Sub Publisher.

7. Send a test message (optional)

On the topic’s Messages tab, click Publish message, paste the dialog’s message body as Message, and click Publish. Maple confirms log forwarding within seconds. The message proves the topic, subscription and push; the sink is proven by the first real log.

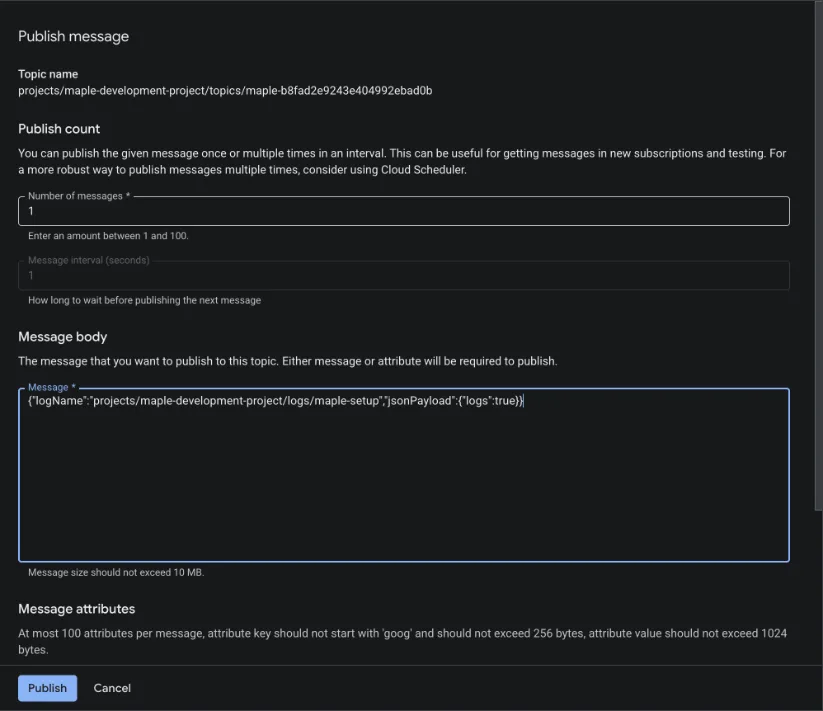

The Publish message panel with the test message body pasted into Message and the Publish button.
The test message from the dialog.

8. Create the read-only service account

Maple reads metrics and resources as this account, with short-lived tokens and no key. In IAM & Admin → Service accounts, click Create service account, paste the name, replace the ID the console fills in, and click Create and close.

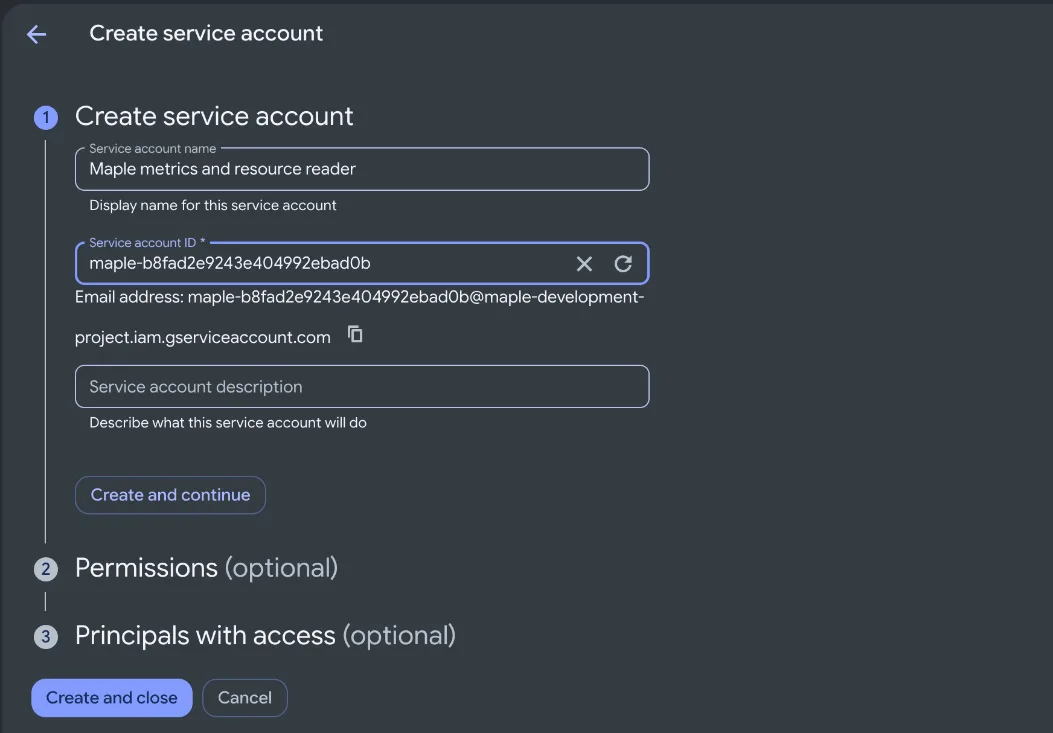

The Create service account form with the name Maple metrics and resource reader and the ID maple-… filled in.
The read-only account, created without roles.

9. Let Maple use the read-only account

Open the read-only account → Principals with access → Grant access. Paste Maple’s service account from the dialog as New principals, replace the preselected Service Account Admin with Service Account Token Creator, and click Save.

If an organization policy restricts members to your domain, Google refuses this grant and nothing is left behind: see Domain restricted sharing.

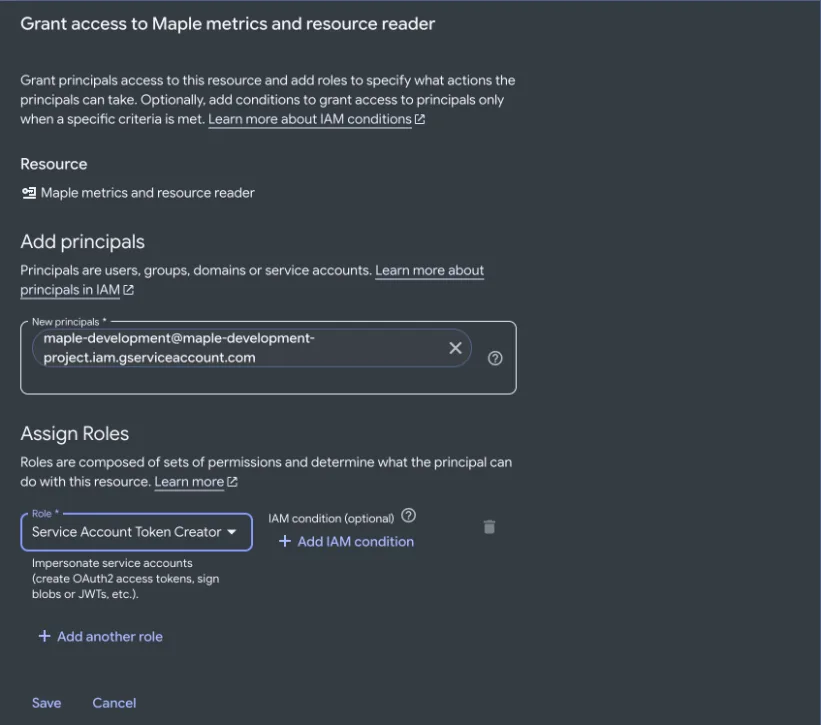

The Grant access panel on the read-only account with Maple's service account as new principal and the role Service Account Token Creator.
Maple's account gets Service Account Token Creator on the read-only account.

10. Grant the read-only roles

In IAM & Admin → IAM, click Grant access, paste the read-only account as New principals, and add Monitoring Viewer, Cloud Asset Viewer and Service Usage Consumer, each after the first with Add another role. Click Save. Cloud Monitoring only answers for a host project with billing linked.

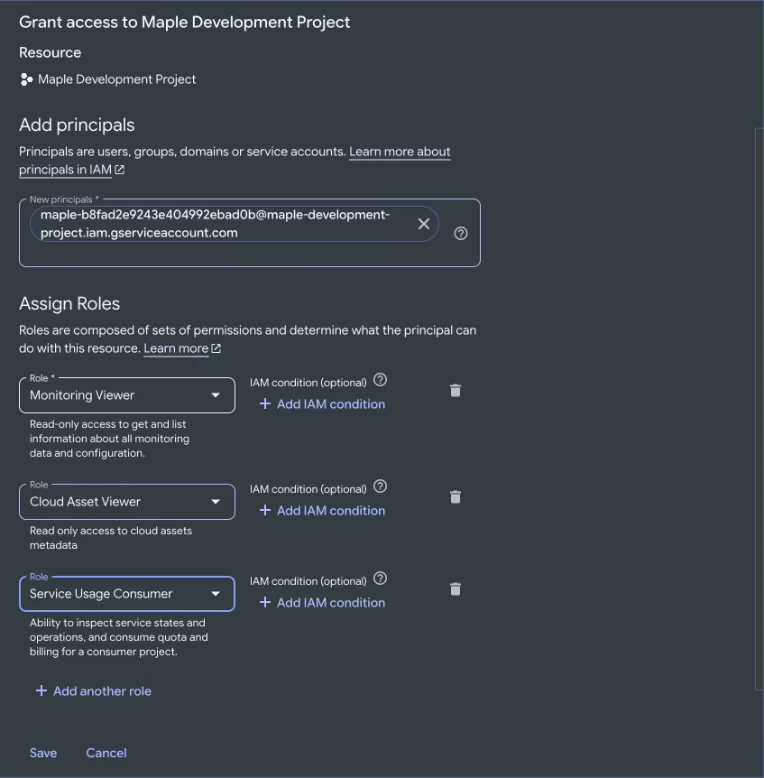

The Grant access panel on the project with the read-only account and three roles: Monitoring Viewer, Cloud Asset Viewer and Service Usage Consumer.
The three read-only roles.

Folders and organizations

Everything goes in the host project except these, which you do on the folder or organization (the dialog’s links open them there):

  • The Log Router sink. Choose Other resource as the sink service and paste the full destination from the dialog, pubsub.googleapis.com/projects/HOST_PROJECT/topics/…: the picker lists only the current project’s topics. Choose Include logs ingested by this folder (organization) and all child resources, not Intercept logs, which keeps those logs from the projects’ own sinks and log buckets. The writer identity in step 6 is the folder’s or organization’s own.
  • Monitoring Viewer and Cloud Asset Viewer on the folder or organization. Service Usage Consumer goes on the host project, as its own step in the dialog.

Confirm the connection

A manual setup sends Maple no report. Maple confirms each part by its first data:

  • Log forwarding by the first push Maple receives: within seconds with the test message, or within a few minutes of the sink.
  • Metrics and resources by the first metrics read, a few minutes after step 10. Until then the connection may say Maple can’t sign in as the read-only account yet.

Removing

When you switch Log forwarding off, the dialog lists what to delete, in this order, each with an Open in console link:

  1. The log sink: ⋮ → Delete sink. Then wait two minutes: Google keeps routing to the topic for over a minute, and a missing topic gets your project a sink error.
  2. The subscription.
  3. The topic. The console asks you to type delete.
  4. The push service account.

Then click I’ve removed them in the dialog: Maple can’t see a removal and takes your word for it.

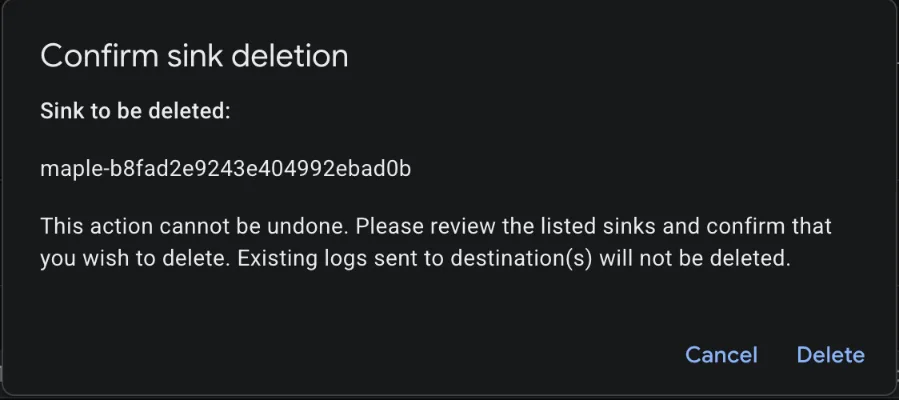

The Confirm sink deletion modal naming the Maple sink.
The sink goes first.

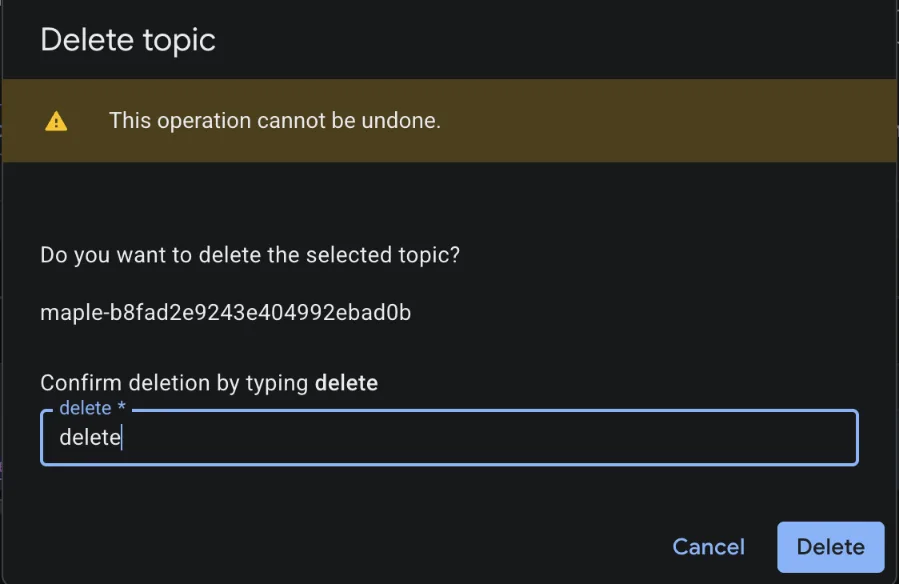

The Delete topic modal, with delete typed into the confirmation box.
Deleting the topic asks you to type delete.

A connection collects at least one of the two. To stop collecting altogether, open the connection’s menu → Disconnect: under Delete them in the console instead it lists everything still set up. For the read-only account, remove its roles in IAM & Admin → IAM (tick it → Remove access), then delete the account.

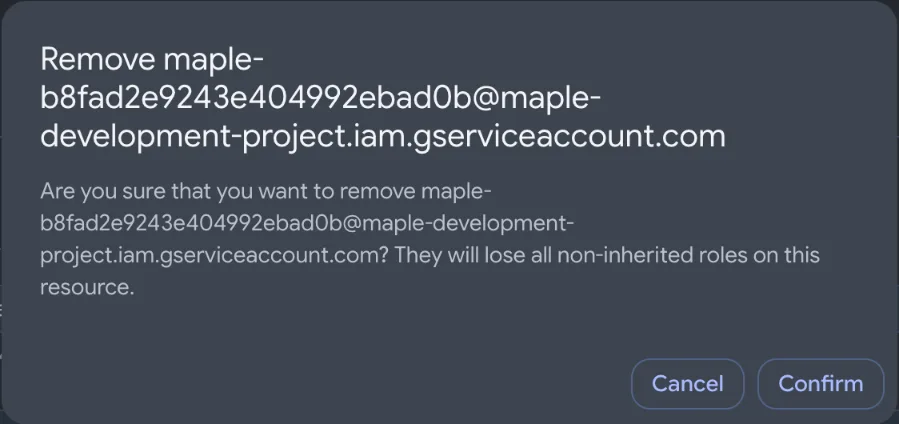

The confirmation to remove the read-only service account's access, listing that it loses all non-inherited roles on the resource.
Removing the read-only account's roles before deleting it.

Leave Logs Writer for a sink’s writer identity on the host project: every sink there writes as that identity.
